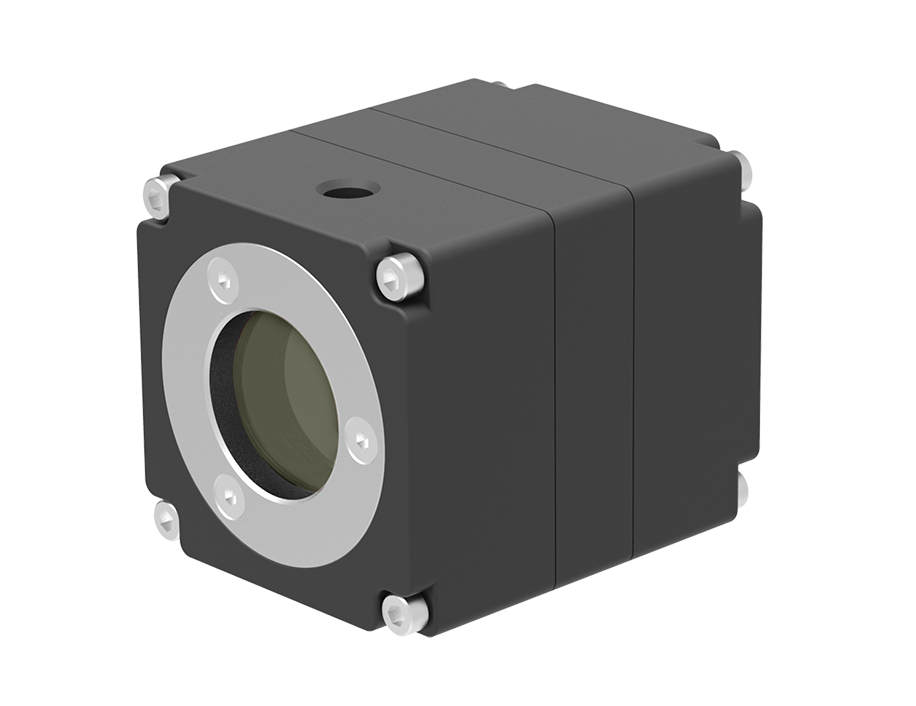

BSI High Sensitivity UV Camera

S-UV-M-R-U

Back-thinned CMOS
Response from UV to NIR (180~1100nm)
83.3%@280nm Excellent UV imaging capability
Very low readout noise: 1.3e-
2048 x 2048 Resolution
High dynamic range up to 93dB
Multi trigger mode design

Characteristics

Application: Corona Detection, Fingerprint Detection, Oil stain Detection

Specifications
Basic parameters Product model S-UV-M-R-U
Sensor type CMOS
Resolution 2048x2048
Sensor size 2"
Color Monochrome
Shutter type Rolling Shutter
Pixel size 11μmx11μm
Quantum efficency 83.3%@280nm
Readout noise 1.3e-
Full well capacity 100ke-
Dynamic range 93dB
Frame rate 24fps
Feature settings Bit depth 16bit
Analog gain High and low gain
Exposure model Manual/Auto/Trigger
Exposure time 0.02ms~10s
Image processing ROI, Gamma, Contrast, External trigger, Gain, etc.
External trigger mode Standard, synchronous, global, software triggered
Output Exposure, readout, global
Interface settings Optical interface M42x0.75/C
Data interface USB3.0
Power interface USB 3.0
Trigger interface Hirose,HR10A-7R-6PB
Other information Power supply 5V
Power consumption <2.5 W
Size Camera:351g, 60×60×64.5mm; Board:75g,53x53x40mm"
Operating temperature -40℃~50℃
Storage temperature -55℃~70℃

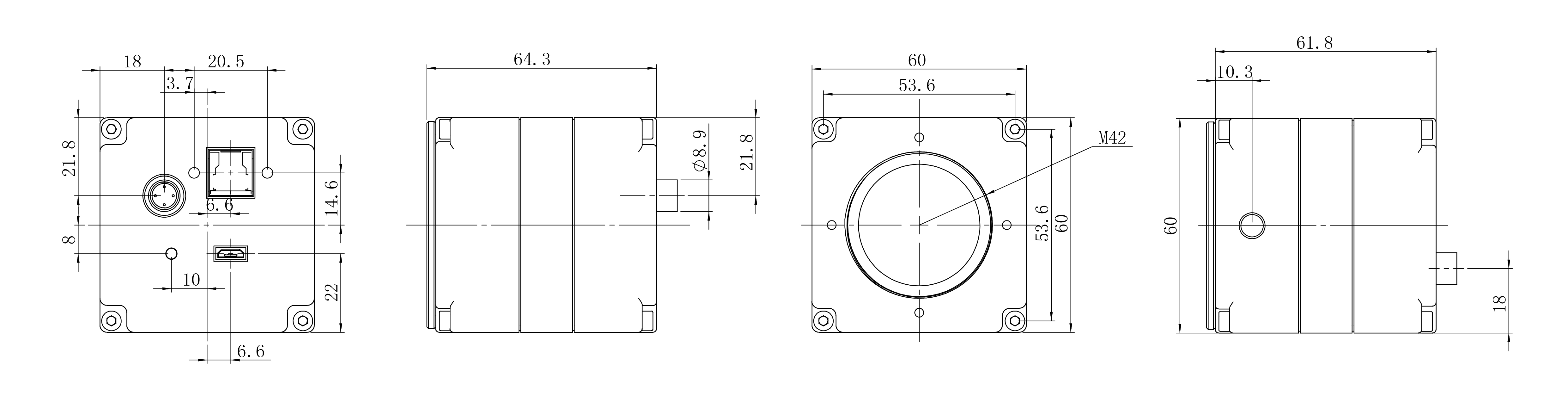

Dimensions
