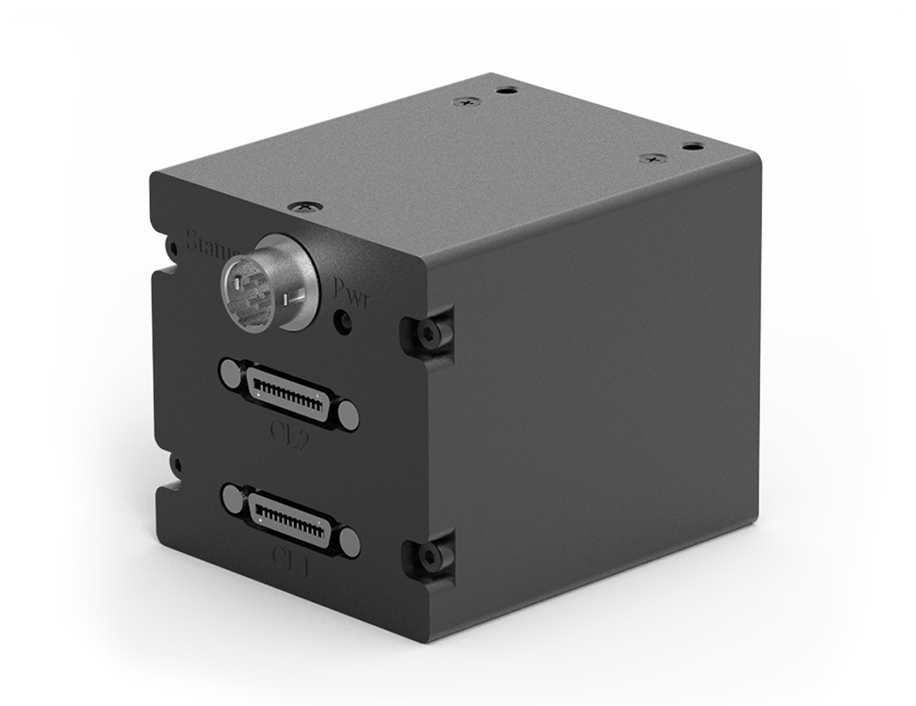

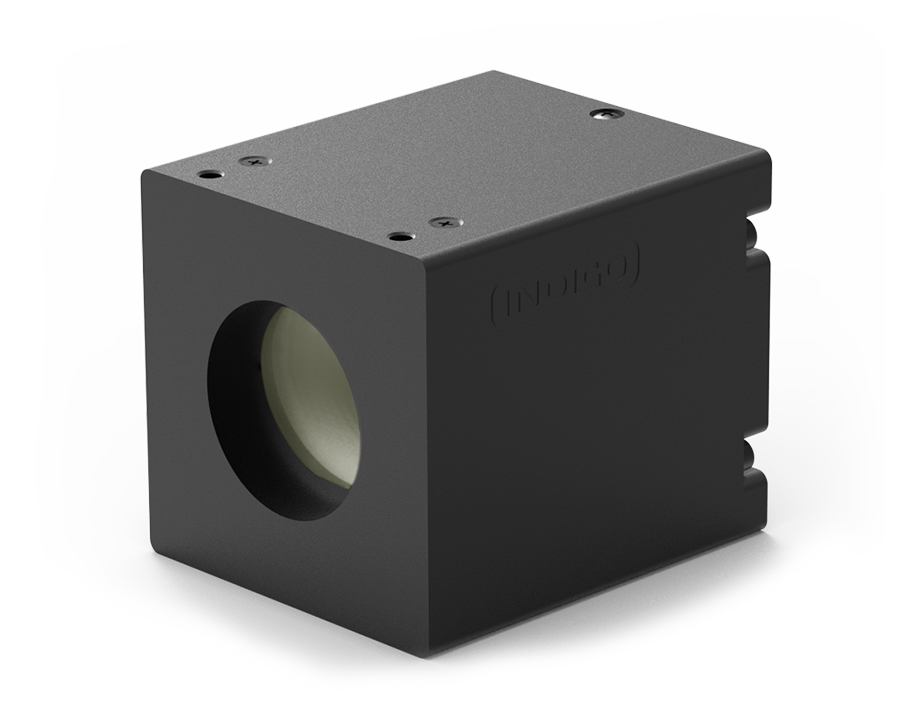

4MP BSI CameraLink Camera

IDG-400B-M-R-CL

Back-thinned sCMOS
QE up to 95%@560nm
Very low readout noise: 1.5e-
2048 x 2048 Resolution
High dynamic range up to 93dB
Cameralink

Characteristics

Application: life sciences, vehicle monitoring, field shooting, machine vision

Specifications
Basic parameters Product model IDG-400B-M-R-CL
Sensor type CMOS
Resolution 2048x2048
Sensor size 1.2"
Color Monochrome
Shutter type Rolling shutter
Pixel size 6.5μmx6.5μm
Quantum efficency 95%@560nm
Readout noise 1.5e-
Full well capacity 50ke-
Dynamic range 90dB
Frame rate 46fps @ 12bit,80fps@11bit
Minimum illumination 0.0005Lux
Feature settings Bit depth 12bit,11bit
Analog gain x1.5~ x10.5
Exposure model Manual, trigger
Exposure time 0.02ms~500ms
Image processing ROI、Binning、flip
External trigger mode Optical isolation triggers input
Output Optical isolation synchronous output
Interface settings Optical interface C interface
Data interface Camera Link
Power interface Hirose,HR10A-7R-6PB
Power supply 12V
Other information Power consumption <2.2 W
Dimensions Camera:180g,45mm x 45mm x 58.50mm
Operating temperature -40℃~50℃
Storage temperature -55℃~70℃

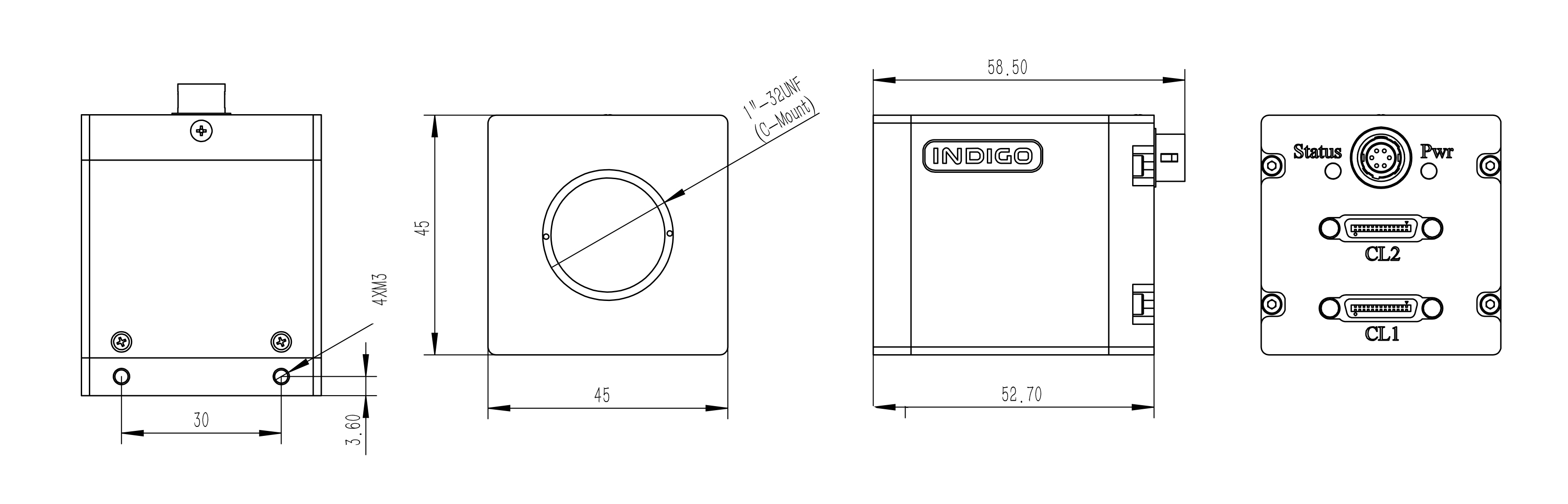

Dimensions
