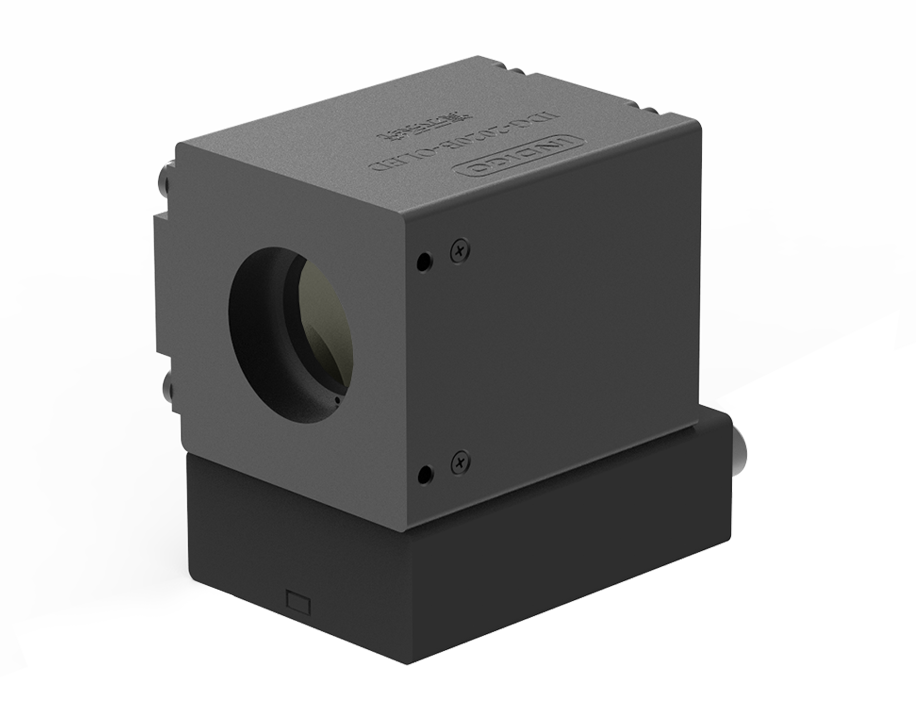

4MP BSI OLED Camera

IDG-400B-M-R-OLED

Back-thinned sCMOS
QE up to 95%@560nm
Very low readout noise: 1.5e-
2048 x 2048 Resolution
High dynamic range up to 93dB
Small size design to meet high space embedded requirements

Characteristics

Application: small size imaging components, suitable for low light level, star level detection and microscopic imaging applications

Specifications
Basic parameters Product model IDG-400B-M-R-OLED
Sensor type CMOS
Resolution 2048x2048
Sensor size 1.2"
Color Monochrome
Shutter type Rolling shutter
Pixel size 6.5μmx6.5μm
Quantum efficency 95%@560nm
Readout noise 1.5e-
Full well capacity 50ke-
Dynamic range 90dB
Frame rate 25fps
Minimum illumination 0.0005Lux
Feature settings Bit depth 8bit
Exposure model Auto
Exposure time 0.02ms~40ms
Image processing Automatic enhancement, 2D filtering, gamma, automatic exposure, DRC, HDR, Binning
Interface settings Optical interface C interface
Data interface PAL/OLED
Power nterface Two 18650 batteries
Power supply 8.4V
Other information Power consumption <2.2 W
Dimensions <65g,40mm×40mm×38.25mm
Operating temperature -40℃~50℃
Storage temperature -55℃~70℃

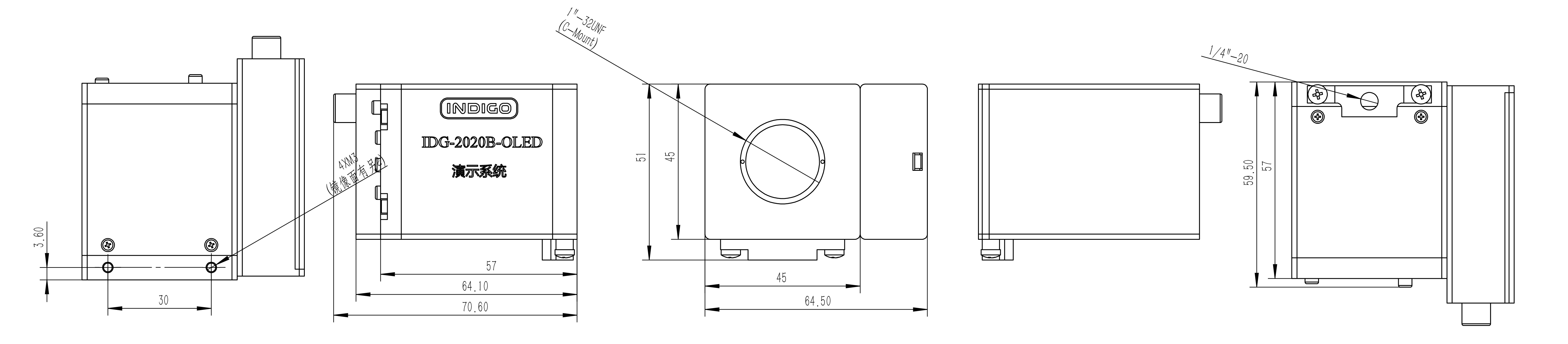

Dimensions
